How to start to work with FStorm Render for 3ds Max

[ #3dsMax #Fstorm ] Daniel Reuterswärd has done first project done with the new GPU render engine FStorm Render. After that He is kind enou...

[ #3dsMax #Fstorm ]
Daniel Reuterswärd has done first project done with the new GPU render engine FStorm Render. After that He is kind enough to share CG Record a tutorial about how to start to work with FStorm Render for 3ds Max from download and install FStorm to set up HDRI lighting, then set up the lighting, post production for Interior with FStorm Render. Check it out to see how you can easy to Render Interior with FStorm Render for 3ds Max

>> See Also: Download FStorm Render v0.2.2 for 3ds Max 2014 - 2017


1. Introduction to Fstorm Render
Fstorm is a new GPU render engine that is developed by Andrey Kozlov. At the moment Fstorm is only available for 3ds Max, but other 3D softwares will be supported in the future. Only Nvidia GPUs are supported and it´s always a good idea to update to the latest drivers.

2. How to Download and setup FStorm Render for 3ds Max
To download FStorm you can go here. The installation is a simple procedure so you just have to follow the instructions.

3.FStorm Render Setup
As you can see below, all the necessary render settings can be easily found in one single tab under Render Setup. The settings you see are the default settings in FStorm.

4. How to setup HDRI lighting in FStorm
So, lets dive in to the fun stuff.
I thought I´d start off with some basic things: How to set up HDRI lighting.

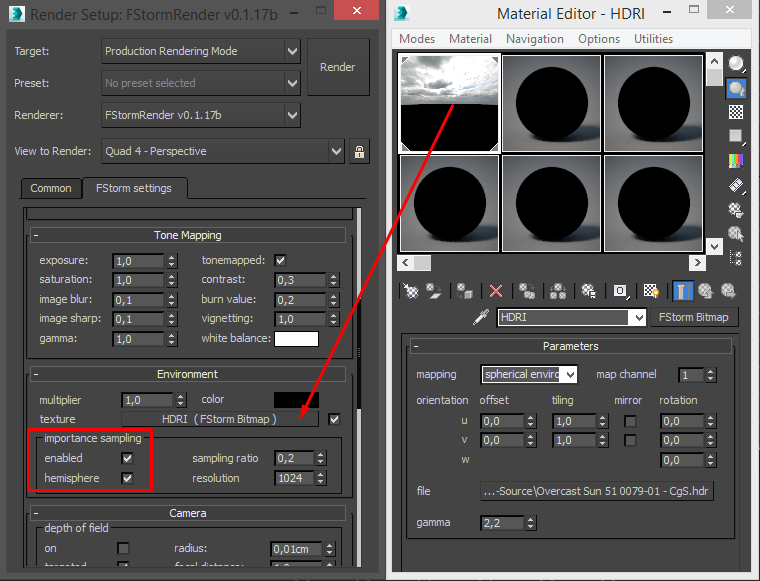

1. Start off by creating a new FStorm Bitmap.
2. Make sure that the "Gamma" is set to "2,2" and the "Mapping" is set to "Spherical Environment".
3. To load the HDRI you would like to use click on "None" next to "File".
4. Copy the "FStorm Bitmap" as an instance to the Environment slot in "Render Setup". Don´t forget to tick "Importance Sampling".
5. Here´s a quick rendering showing that the HDRI lighting works.
5. Project - Lighting

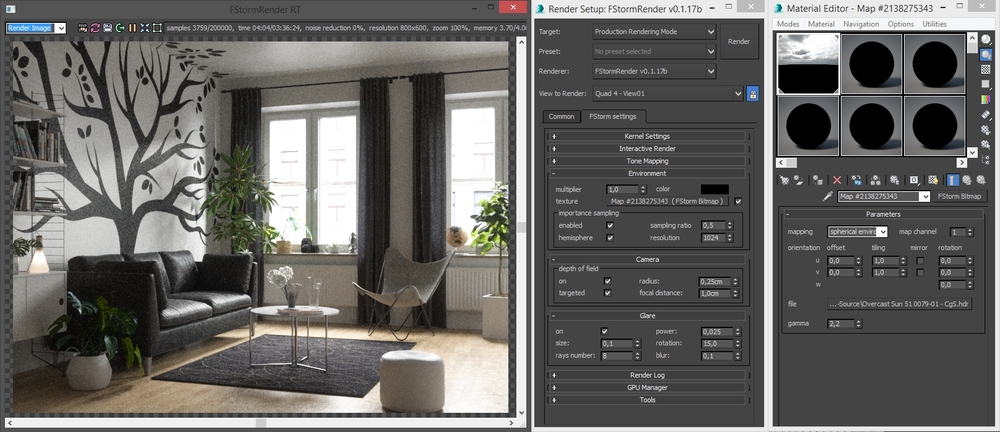

Lets start of with lighting setup in the project. I have done the same thing as I covered previously when setting up the lighting for this project. I´m using an HDRI from Cg-Source. These HDRIs have a great dynamic range.
I have also enabled DOF and some Glare, however these parameters are very scene specific so you will have to experiment to find a good balance for your scene.
For the lamp I have used a FStorm Sphere Light that I have put inside the glass lamp.
That is my complete lighting in the scene! :)
6. FStorm Materials
Time for materials! I will start with the glass vase since I really like how glass and metals behave in FStorm. This is fairly basic glass material setup, but I added a noise to the bump slot for some irregularities and also a gradient to create a nice effect of the glass going from black to clear.
Here are the settings for the FStorm Gradient and FStorm Noise.
Next material is the carpet. I have used the same approach to the carpet as I would any fabric material. The original texture is plugged in to the "texture 1" slot in a "FStorm Mix" texture and a lighter version of the original texture is plugged in to the "texture 2" slot. These two textures are then mixed with a "FStorm Falloff" so the lighter texture appears at the grazing angles.

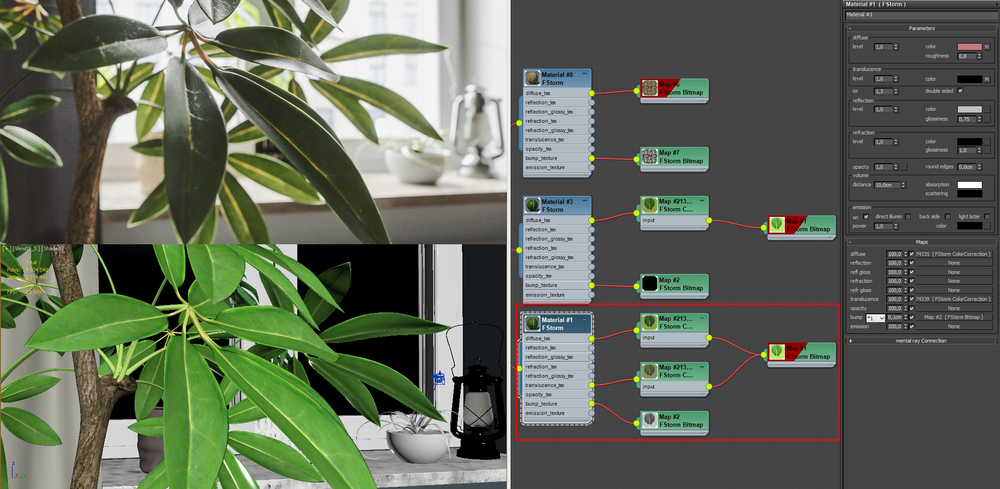

Lets move on to the plant shader. This is how I usually set up vegetation. You can of course take this one step further buy adding color variation etc, but I felt this worked fine for this plant.

As you can see in the image below I have used a "FStorm ColorCorrection" node between the original texture and the input for "diffuse_tex" and "translucence_tex". This is to have control mostly of the tint and the saturation on the plant and the translucency. For this plant I made the translucency a bit more yellow and also desaturated both the dIffuse and the translucency.

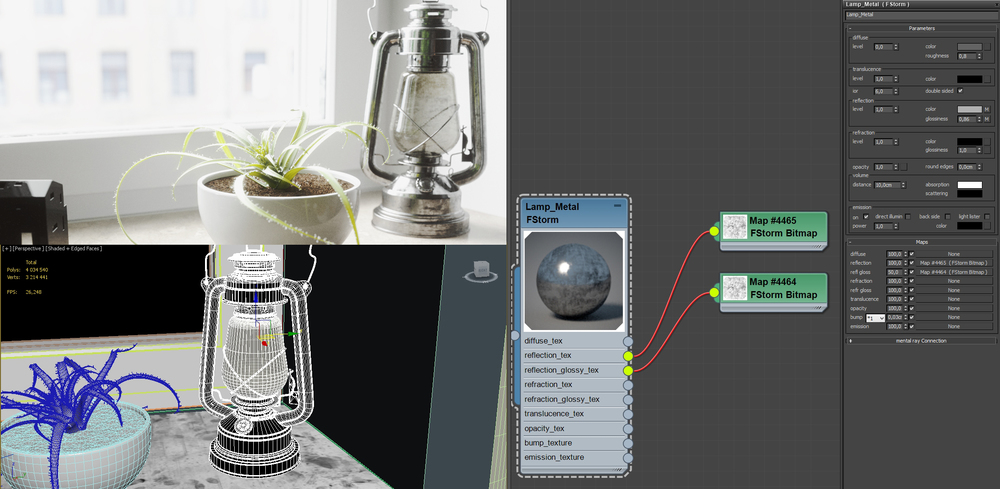

The final material I will look at it is the metal for the lamp on the windowsill. Here I have added textures to the reflection and reflection glossiness to add a more old, used look to the metal. I have also lowered how much the texture affects the reflection glossiness since I felt the effect was too strong. There´s no diffuse in the material at all and the IOR is set to 6.0. The IOR value of 6.0 gives (in my eyes) a more deeper looking metal with a bit more contrast.
7. Post Production
Time for post production. First off all I don´t have a strict post production workflow, my post production changes from time to time and also every scene needs a slightly different post work. I will go through the first image in this project, the other images had the same post production applied. Here´s the raw render that I got out of FStorm:
I started off by opening the image in Photoshops Camera Raw filter and did some minor adjustments. I later had to change these based on the ColorLookup/LUT I chose. Here are the things I adjusted in Camera Raw:
I almost always use LUTs on my images as I feel the right LUT can bring out a bit more realism in the image. Here´s how the image looked when I applied a LUT at 30% opacity:
At this point I wasn´t completely happy with the image so I played around a bit more and ended up using 2 more LUTs with a very low opacity (about 20%). I then added those to a group and lowered the group opacity to 75%.
With those 2 LUTs added I was happy with the final image:
From Fstorm v0.2.1 User can have more handly Tone Mapping with LUTs support

8. Conclusion
I´m very satisfied with FStorm and I´m sure it will only get even better. All of the things I have covered here are based on my personally opinions and approach to photo realism. The best advice I can give is to not be afraid of exploring new things and testing new software.
Thank you Daniel for a great tutorial!
